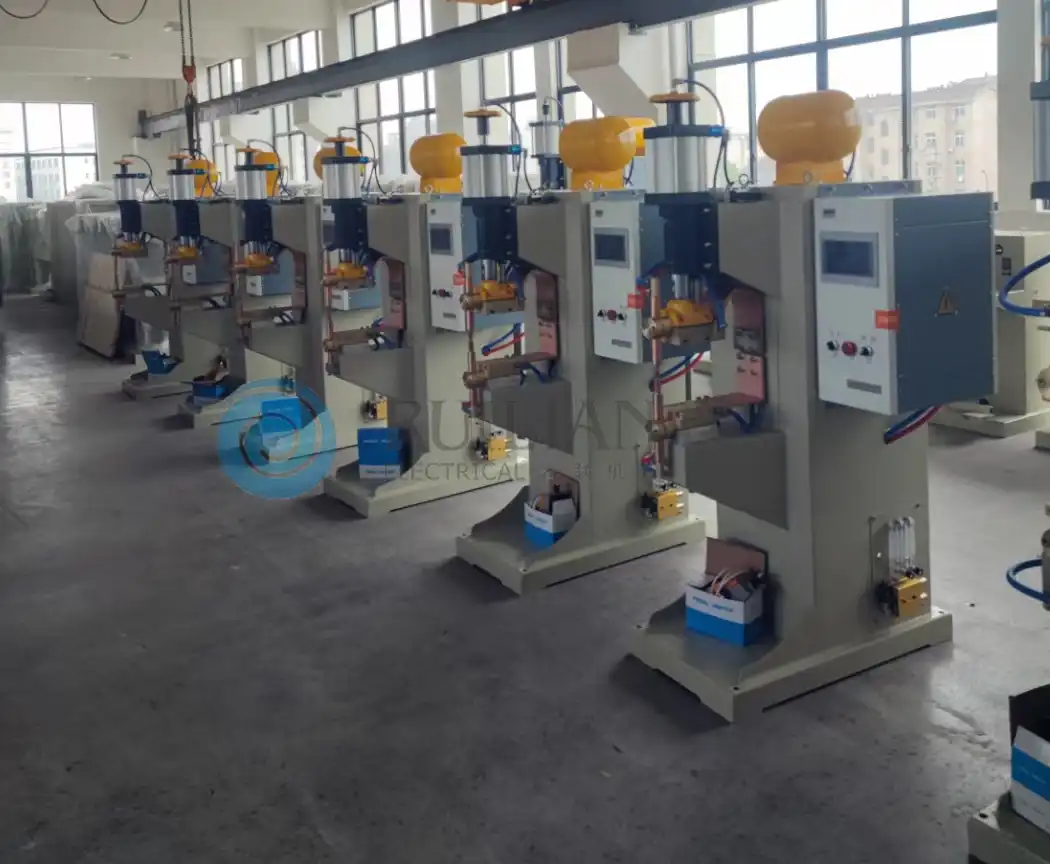

What is Medium Frequency Spot Welding Machine?
Our Medium Frequency Spot Welding Machine is designed to provide high-quality welding solutions for various industries, including automotive, aerospace, and electronics. With its advanced technology and robust design, our machine ensures precise and efficient welding processes.
Technical Parameters:
Before delving into the inner workings of the Medium Frequency Spot Welding Machine, it's imperative to understand its technical specifications. The table below outlines the key parameters that define its capabilities:
| Parameter | Specification |
|---|---|
| Power Output | 20 - 200 kW |
| Input Voltage | 220V/380 V, 50/60 Hz |
| Frequency | 1000 - 10000 Hz |
| Welding Thickness Range | 0.1 - 5 mm |
| Electrode Stroke | 20 - 100 mm |
| Cooling Method | Water cooling |
| Control System | PLC control + Medium frequency power supply |
| Dimensions (L x W x H) | Depends on the specific specifications |
| Weight | 500 - 3000 kg |
| Certification | ISO 9001:2015, CE, RoHS |
Working Principle:
1.Electrode Positioning: The process initiates with precise electrode positioning, ensuring optimal contact with the metal surfaces to be joined.
2.Current Application:Upon activation, a controlled electrical current passes through the electrodes, generating intense heat at the point of contact.
3.Material Fusion: This localized heat causes the metal surfaces to reach their melting point, facilitating fusion.
4.Pressure Application: Simultaneously, mechanical pressure is applied, forging a strong bond between the metals as they cool and solidify.
Product Features:
Robust Construction: Durable construction using high-grade materials for long-lasting performance in demanding industrial environments.
Advanced Inverter Technology: High-frequency inverter technology delivers precise control over welding current and time for superior weld quality and consistency.
User-Friendly Interface: Intuitive control panel with digital display for easy operation and monitoring of welding parameters.
Multiple Welding Modes: Offers a range of welding modes including pre-weld, pulse, and slope control for optimal results on various material types and thicknesses.
Safety Features: Equipped with comprehensive safety features like overload protection, overheat protection, and emergency stop for enhanced operator safety.
Application Fields:
1.Auto Industry: From frame gathering to body board creation, the machine tracks down broad use in auto fabricating, guaranteeing underlying trustworthiness and life span.
2.Aviation Sector: Basic parts in airplane get together interest accuracy Medium Frequency Spot Welding Machine, making the machine vital in aviation applications.
3.Gadgets Manufacturing: It meets the intricate needs of electronics production thanks to its micro-welding capabilities, ensuring dependability in delicate soldering tasks.
Quality Control and Safety Standards:
1.ISO Certification: Compliance with ISO standards underscores commitment to quality and reliability.
2.Safety Protocols: Adherence to industry safety standards ensures operator protection and regulatory compliance.
3.Quality Assurance: Rigorous testing protocols and quality checks guarantee consistency and performance reliability.
Why Choose Us
Over 10 years of experience in welding machine manufacturing
Expert team for technical support and maintenance
Global distribution network for timely delivery
Competitive pricing for high-quality products
FAQ:
Q: What is the warranty period for your machine?
A: Our machine comes with a 1-year warranty.
Q: Can I customize the machine for my specific needs?
A: Yes, we offer customization options for our machine.
Q: What is the lead time for delivery?
A: Our standard lead time is 2-4 weeks.
Contact Us
As an expert medium frequency spot welding machine manufacturer and supplier, if you have any interest , contact ry@china-ruilian.cn and hm@china-ruilian.cn.
